base cabinets
EXPOSED ENDS REQUIRE FINISHED PLANT-ON PANELS
Standard sizes kept in stock. Custom sizes available to order.
Doors and Hardware sold separately.
B UNIT - single door
Base cabinet box made for use with one full height door.
Available in stock in:
B09 - 9”W, 23.5”D, 34.75”H
B12 - 12”W, 23.5”D, 34.75”H
B15 - 15”W, 23.5”D, 34.75”H
B18 - 18”W, 23.5”D, 34.75”H
B21 - 21”W, 23.5”D, 34.75”H
OR CUSTOM ORDER
B UNIT - double door
Base cabinet box made for use with two full height doors.
Available in stock in:
B24 - 24”W, 23.5”D, 34.75”H
B27 - 27”W, 23.5”D, 34.75”H
B30 - 30”W, 23.5”D, 34.75”H
B33 - 33”W, 23.5”D, 34.75”H
B36 - 36”W, 23.5”D, 34.75”H
B39 - 39”W, 23.5”D, 34.75”H
OR CUSTOM ORDER
BD UNIT - single door
Base cabinet box made for use with one top drawer and one door.
Available in stock in:
BD12 - 12”W, 23.5”D, 34.75”H
BD15 - 15”W, 23.5”D, 34.75”H
BD18 - 18”W, 23.5”D, 34.75”H
BD21 - 21”W, 23.5”D, 34.75”H
OR CUSTOM ORDER
BD UNIT - double door
Base cabinet box made for use with one top drawer and two doors.
Available in stock in:
BD24 - 24”W, 23.5”D, 34.75”H
BD27 - 27”W, 23.5”D, 34.75”H
BD30 - 30”W, 23.5”D, 34.75”H
BD33 - 33”W, 23.5”D, 34.75”H
BD36 - 36”W, 23.5”D, 34.75”H
OR CUSTOM ORDER
BDb UNIT
Base cabinet box made for use with one top drawer and two deep bottom drawers.
Available in stock in:
BDB12 - 12”W, 23.5”D, 34.75”H
BDB15 - 15”W, 23.5”D, 34.75”H
BDB18 - 18”W, 23.5”D, 34.75”H
BDB21 - 21”W, 23.5”D, 34.75”H
BDB24 - 24”W, 23.5”D, 34.75”H
BDB27 - 27”W, 23.5”D, 34.75”H
BDB30 - 30”W, 23.5”D, 34.75”H
BDB33 - 33”W, 23.5”D, 34.75”H
BDB36 - 36”W, 23.5”D, 34.75”H
OR CUSTOM ORDER
BSP UNIT
Base sink cabinet box made for use with one top false panel and two doors.
Available in stock in:
BSP27 - 27”W, 23.5”D, 34.75”H
BSP30 - 30”W, 23.5”D, 34.75”H
BSP33 - 33”W, 23.5”D, 34.75”H
BSP36 - 36”W, 23.5”D, 34.75”H
BSP39 - 39”W, 23.5”D, 34.75”H
OR CUSTOM ORDER

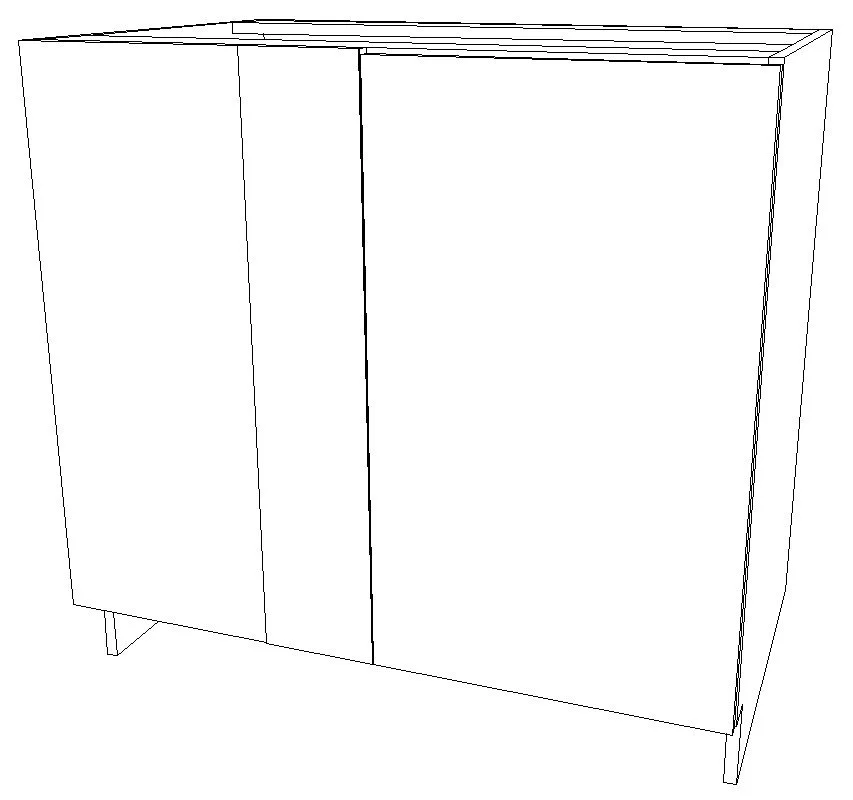

BC UNIT - SINGLE DOOR
Base blind corner cabinet box made for use with one false panel and one door.
Available in stock in:
BC39L - 39”W, 23.5”D, 34.75”H
BC39R - 39”W, 23.5”D, 34.75”H
** UTILIZES B39 CABINET BOX. DOOR AND FALSE PANEL SOLD SEPARATELY**
OR CUSTOM ORDER
BK UNIT
Base corner cabinet box made for use with two bifold doors.
Available in stock in:
BK3333 - 33”x33”W, 23.5”D, 34.75”H
BK3636 - 36”x36”W, 23.5”D, 34.75”H
OR CUSTOM ORDER
special order cabinet styles
B2d UNIT
Base cabinet box made for use with two drawers.
Available to order from 12”W to 36”W
B4d UNIT
Base cabinet box made for use with four drawers.
Available to order from 12”W to 36”W
abd UNIT
Appliance base cabinet box made with one finished interior appliance box and one lower box for use with one drawer.
Available to order from 24”W to 36”W
Top Finished Interior Box dimensions:
24.375”D x 18.75”H x Any Width 24”-36”W
Lower Drawer Box dimensions:
23.5”D x 16”H (including toe kick height)
wine lower UNIT
Finished interior box with fixed shelves made for wine bottles.
Available to order in any available colour:
Standard size 6”W, 12”D, 34.75”H
